L5 LTS

Wednesday, May 18, 2016 10449
What does it take to throw the entire frequency spectrum over 30 meters and beyond? Only large line arrays pack a punch powerful enough to deliver that kind of performance. Until now, that is. LINEAR 5 LTS has arrived, and it’s the first speaker to deliver real long throw performance in an ultra-compact format
L5 LTS

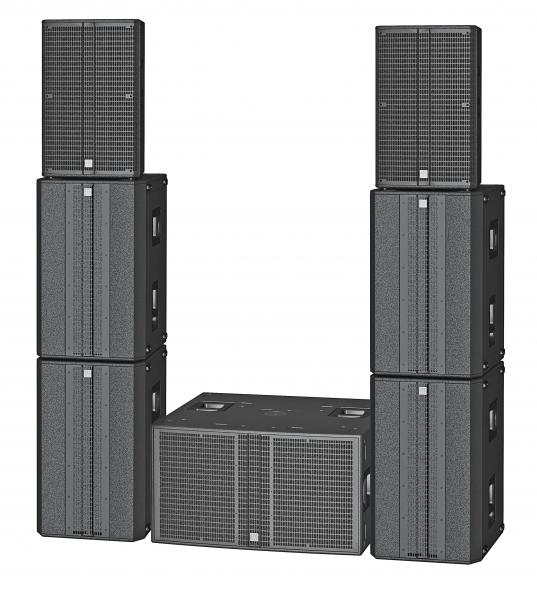

What does it take to throw the entire frequency spectrum over 30 meters and beyond? Only large line arrays pack a punch powerful enough to deliver that kind of performance. Until now, that is. LINEAR 5 LTS has arrived, and it’s the first speaker to deliver real long throw performance in an ultra-compact format. Now you can hit the road with fewer speaker components in tow, saving valuable space on your truck. What’s more, you can set up, stack and fly rigs that much faster and easier. The new LINEAR 5 LTS is not only the easiest way of delivering the best sound for small and midsized live events, corporate events, and installation projects; it’s also the most economical option out there.




•    Ultra-compact long throw system
•    Economical (cost-performance ratio, saves truck space)
•    Innovative Multicell Transformer technology (MCT)
•    Vertical asymmetrical directivity (+5° / -25°)
•    Acoustically correct headstacking
•    Coherent wavefront stacking
•    138dB Halfspace
•    Filter presets available for lab.gruppen IPD controllers
•    Made in Germany




Model
L5 LTS
Power-handling nominal (RMS) 600 Watt
Power-handling, program 1200 Watt
Power-handling, peak 2400 Watt
Nominal impedance 8 ohms
Max SPL 133 dB half space (@10% THD)
Max SPL peak 138 dB half space (@10% THD)
Sensitivity 1W/1m 110 dB half space
Frequency response +/- 3 dB 108 Hz - 14 kHz
Frequency response -10 dB 100 Hz - 20 kHz
Low/Mid Speaker 3x 8" with 2" voice coil (32 ohms) Neodymium
HF Driver 1" with 1.75" voice coil (16 ohms) Neodymium
Horn characteristics 60° x +5°/-25° MCT horn
Crossover frequency 1.7 kHz, 12 dB/oct.
Connections 2x Speakon NL4, pin assignment switchable between 1+/1- and 2+/2-
Pole mount MonoTilt 0°
Rigging points 7x M8
Handles 2, integrated
Enclosure Birch multiplex
Grille 2 mm metal grille backed with black acoustic foam
Finish Acrylic enamel, black
Optional accessories Protective transport covers, Tilt bracket, Tilt bracket head stack extension set, Pick point / Cluster plate, AP-8 Rigging point
Dimensions (WxHxD) 44 x 68 x 46 cm
Weight 26.4 kg / 58.2 lbs..
